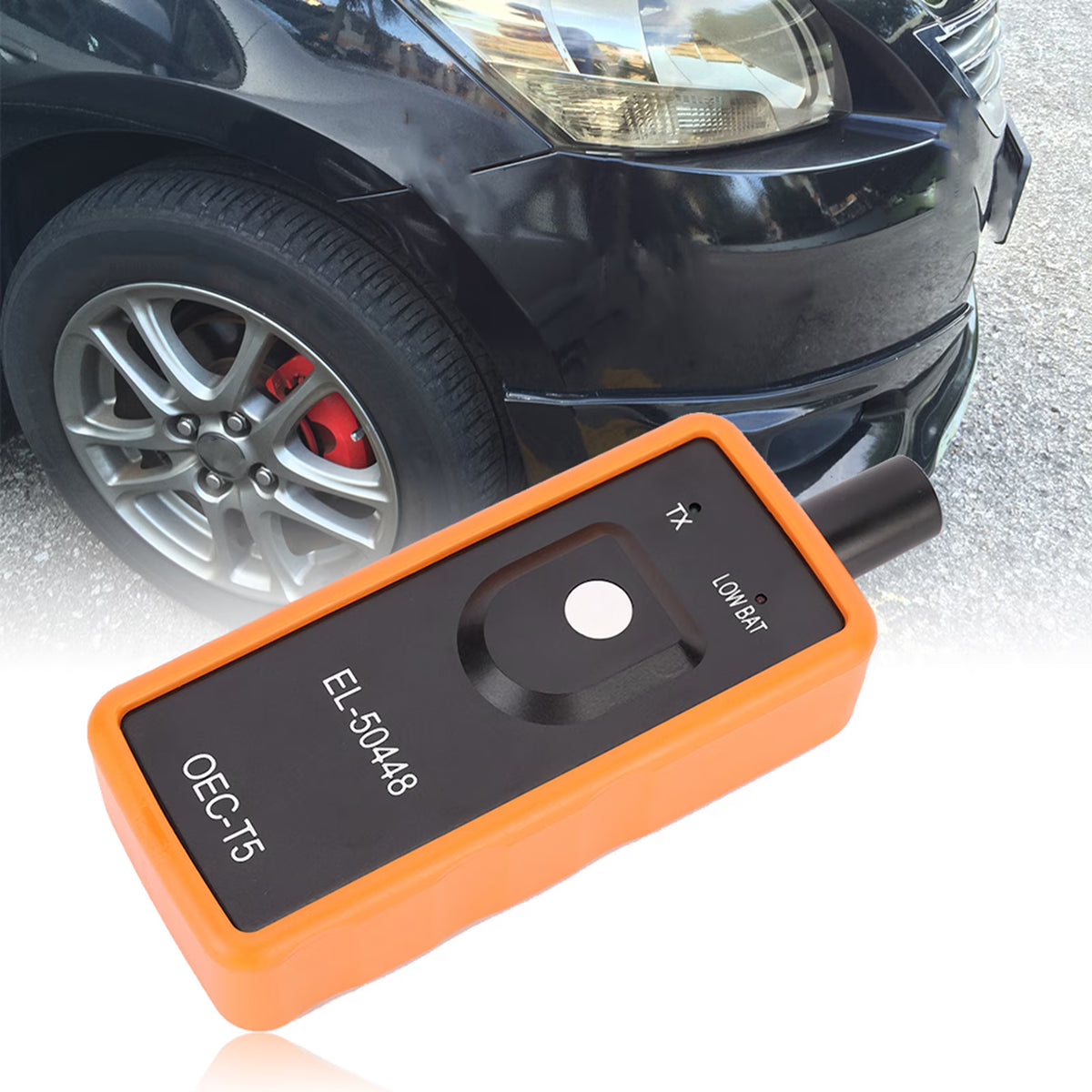

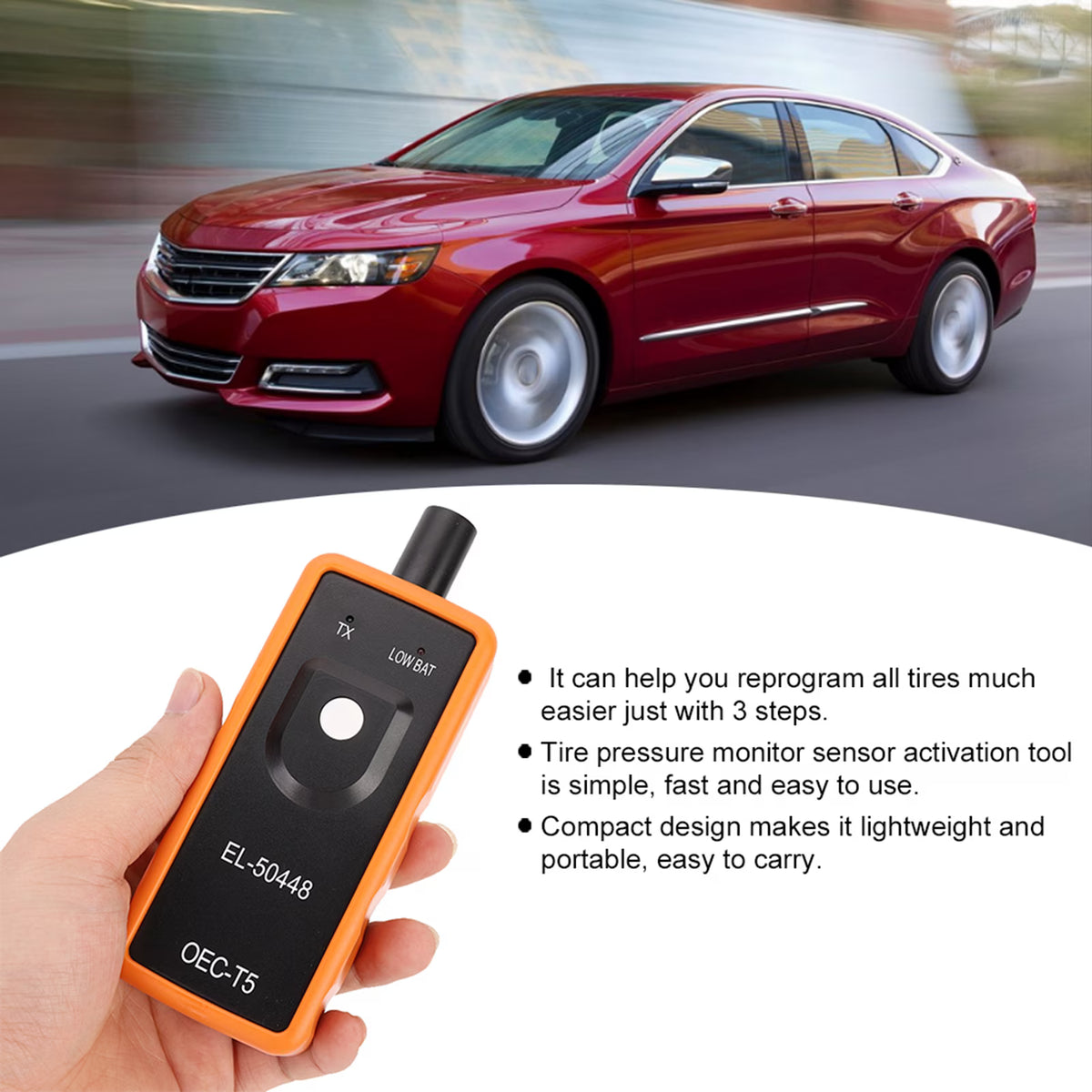

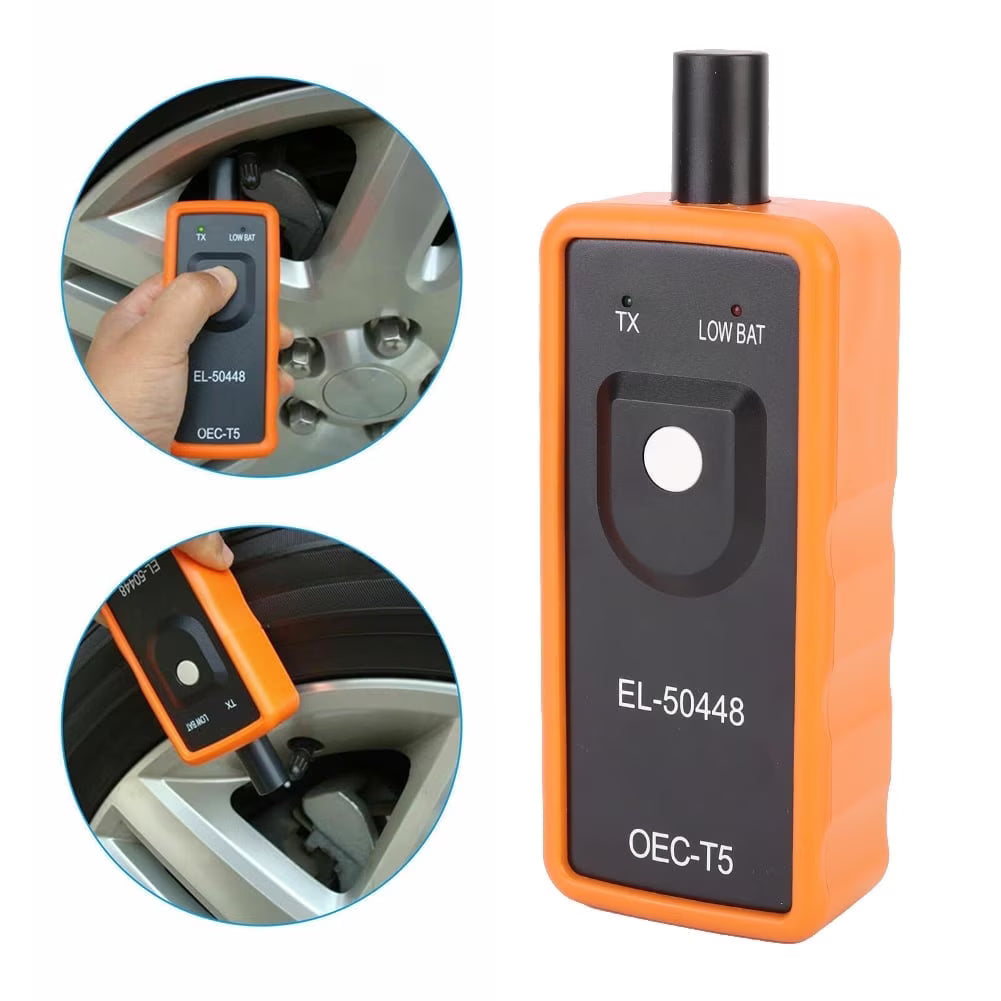

Universal Car Tire Pressure Monitor Sensor TPMS Reset Relearn Activation Tool

Specification:
Condition:
Item Type: Tire Pressure Reset Tool
Color: As the Picture Shows
Battery: 9 Number Battery Not Included
Hardware Version:OEC-T5
Software Version:EL-50448
Voltage: 9V
Fitment:
Fits for Universal Car

Application method:
Step 1 - Enter leaning mode
Set the gearshift lever to "P"
Put the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press “Set / Ctrl”
The turn is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2 - Read tire pressure sensor information
Start from the front-left wheel,
Make the J-46079 or Diagnostic Tool EL-
50448 antenna up against the valve core position and close to the margin of the tire sidewallEl-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once
Step 3 - Same method to read other tire pressure information
Follow the instuction to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn is lighted for 3 seconds and the horn bleeps twice when the learning is complete.

Package List:
1 x Tire Pressure Reset Tool
